Dallas, GA
Charcoal HDZ Transformation – Dallas

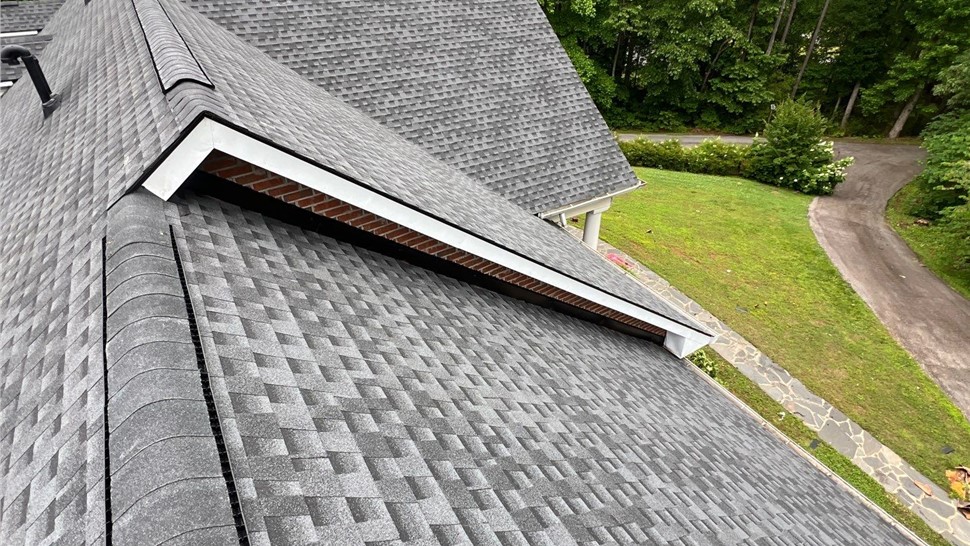

This roof replacement in Dallas, GA restored full protection to the home using GAF Timberline HDZ architectural shingles in Charcoal. The project improved curb appeal, enhanced weather resistance, and delivered a durable, manufacturer-backed roofing system designed to perform reliably under North Georgia weather conditions.
Project Overview
Following storm exposure and age-related wear, the homeowner noticed declining roof performance, including deteriorated shingles, compromised flashing, and ventilation concerns. An inspection confirmed the need for a full roof replacement, along with upgraded leak protection, flashing improvements, and ventilation enhancements. The existing roofing system was no longer providing dependable defense against heavy rainfall and seasonal storms, prompting the need for a comprehensive and long-lasting solution.
Results

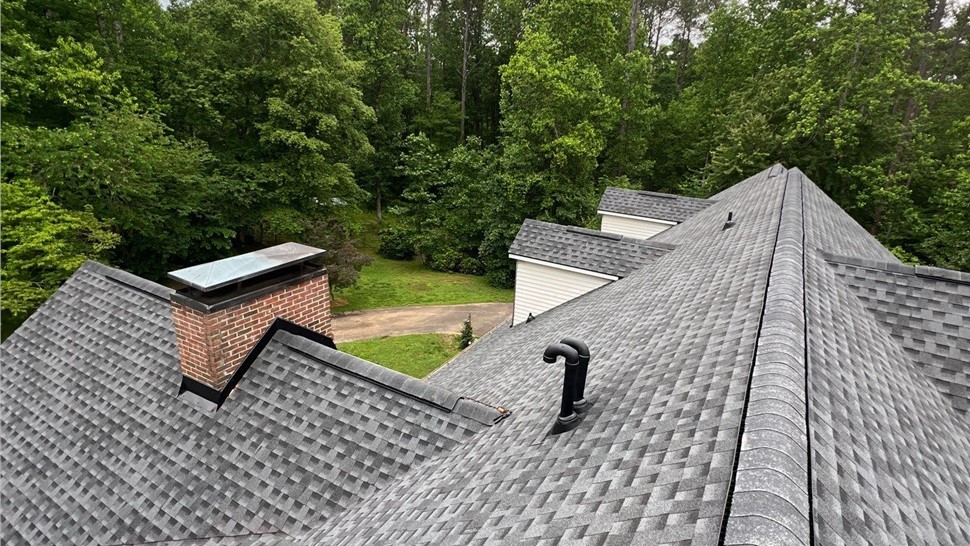

The new roofing system delivered immediate improvements in protection, appearance, and overall performance. GAF Timberline HDZ shingles provided enhanced wind resistance, uniform coverage, and long-term durability. StormGuard ice and water shield was installed at valleys, penetrations, pitch changes, and chimney areas to reinforce leak protection. Flashing was upgraded at walls, brick transitions, and the chimney, including new step, headwall, and counter flashing. Ventilation was improved by removing existing ridge vents and installing new Cobra III ridge vent sections, with additional exhaust upgrades including a gooseneck vent and HVAC vent modifications. All work was completed to manufacturer and installation standards, resulting in a secure roofing system built to perform through future storms.
Materials Used
Roofing:
GAF Timberline HDZ architectural shingles – Charcoal (76 sq)
GAF Seal-A-Ridge hip & ridge cap – Charcoal (12 bundles)
Underlayment & Protection:
Tri-Built synthetic underlayment (8 rolls)
GAF StormGuard ice & water shield (7 rolls)
Starter & Edge Protection:
GAF ProStart starter shingles (6 bundles)
Drip edge – 10" x 5" x 2" black (eaves) (28 pcs)
Drip edge – 10" x 4" x 2" black (rakes) (33 pcs)
Ventilation & Accessories:
GAF Cobra III ridge vent (45 pcs)
3-in-1 pipe boots with rain collars – Black (9 boots)
7" gooseneck exhaust vent (1)
HVAC cap, collar, and flashing kit (1)
Flashing & Metals:
Rolled flashing – 25' galvanized (24" wide) (1 roll)
Step flashing – 2" x 4" x 8" black (2 boxes)
Headwall flashing – 4" x 4" black (5 pcs)
Counter flashing – 5" black (3 pcs)
Decking & Lumber:
1/2" CDX plywood (10 boards, as needed)
Fasteners & Sealants:
Aluminum roofing nails – 1 1/4" (2 boxes)
Galvanized nail coils (5 boxes)
Stinger NailPac (5 boxes)
NP1 sealant – Black (7 tubes total)
NP1 sealant – Clear (1 tube)
Finishes:
Black spray paint (4 cans)
