Chimney Cricket Upgrade – Marietta
This roof repair in Marietta, GA restored critical protection around the home’s chimney using Tamko Rustic Black architectural shingles. The project addressed water intrusion risks at the rear chimney wall, improved drainage with a newly installed cricket, and reinforced both roofing and siding components for long-term weather resistance.
Project Overview
Following storm exposure and ongoing wear, the homeowner experienced issues related to the chimney area, including compromised shingle coverage, deteriorated corner boards, and inadequate water diversion. An inspection confirmed the need for targeted repairs, including installing a chimney cricket, replacing damaged shingles, upgrading flashing protection, and repairing siding components along the chimney chase. The goal was to eliminate leak risks while restoring proper drainage and structural integrity at this high-exposure area.
Results

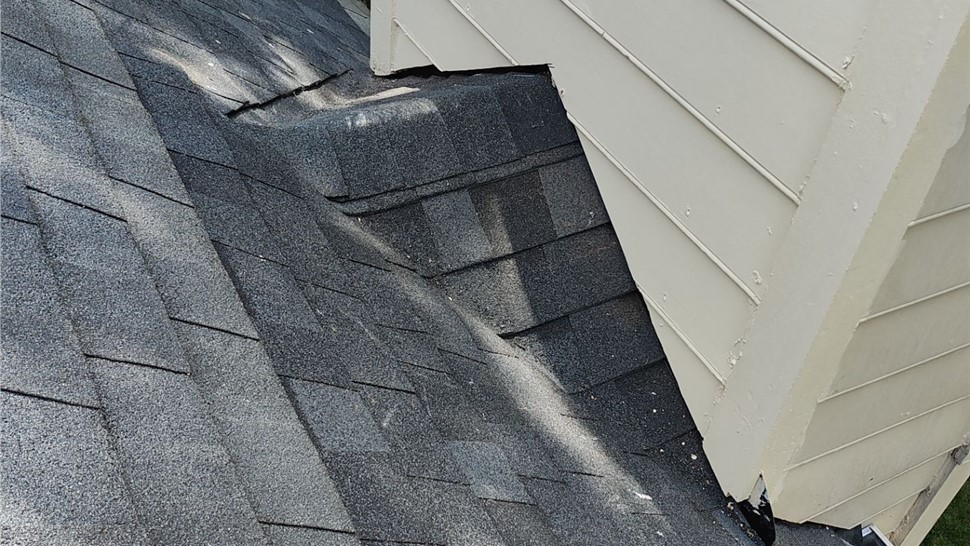

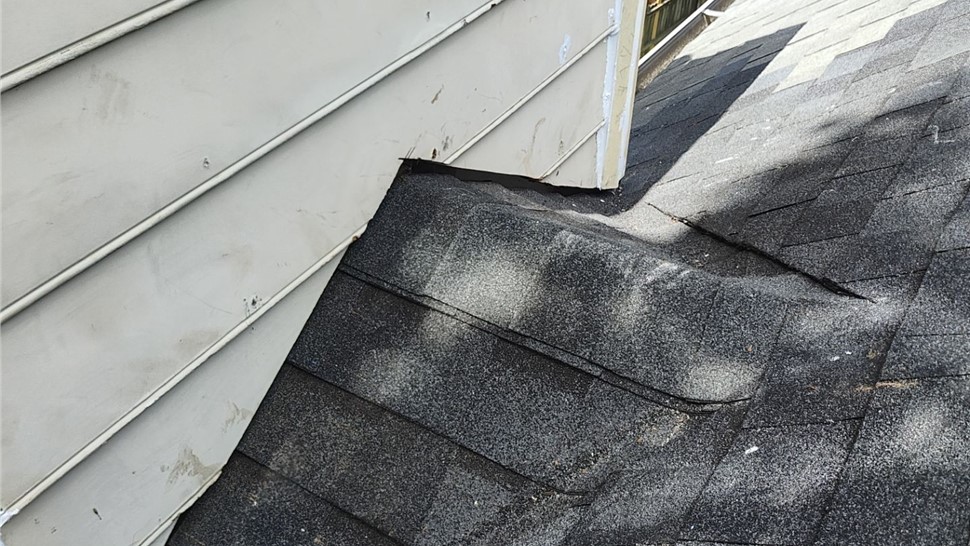

The completed repairs restored dependable protection and significantly reduced the risk of future leaks. A new chimney cricket was constructed and installed to divert water away from the chimney base, with StormGuard ice and water shield added for enhanced leak protection. The affected area was re-shingled using Tamko Rustic Black architectural shingles, with matching 3-tab shingles installed as ridge caps. Damaged corner boards were removed and replaced with new James Hardie corner boards, then sealed and painted for a clean, finished appearance. All components were installed and sealed to professional standards, leaving the chimney area secure, properly drained, and weather-ready.
Materials Used
Roofing:
Tamko Rustic Black architectural shingles (4 bundles)
3-tab black shingles (ridge caps) (3 bundles)
Underlayment & Protection:
StormGuard ice & water shield (1 roll)
Flashing & Drainage:
Chimney cricket framing (2" x 4" x 12')
Siding/Exterior:
James Hardie 5/4 corner boards – 12' (2 pcs)
Paintable exterior sealant (1 tube)
Fasteners & Sealants:
2100 roofing sealant (1 tube)
