Stockbridge Penetration & Flashing Repair
This roof repair in Stockbridge, GA restored localized protection to the home using Atlas Pinnacle architectural shingles in Oyster Gray. The project addressed shingle damage, flashing vulnerabilities, and roof penetrations on a steep-slope roof, reinforcing critical areas and extending the service life of the existing roofing system.
Project Overview
After identifying localized wear and water exposure on a steep 10/12 pitch roof, the homeowner requested an inspection to prevent further damage. The evaluation confirmed that the issues were confined to specific areas and could be resolved through targeted repairs rather than a full replacement. The scope of work focused on shingle replacement, improved flashing and penetration sealing, and minor decking reinforcement to restore watertight integrity.
Results
The completed repairs successfully restored protection and improved water resistance in the affected sections of the roof. Damaged shingles were replaced with Atlas Pinnacle architectural shingles in Oyster Gray to maintain a consistent appearance. Ridge cap shingles were installed to reinforce ridge-line coverage, while new HVAC vent base flashings, caps, and collars were added to improve sealing at penetrations.
Additional ice & water shield was installed in leak-prone areas, and a section of OSB decking was replaced to ensure a solid nailing surface. Exposed fasteners and flashing were sealed using 2100 sealant, and finishing touches were completed with color-matched spray paint. With repairs completed to manufacturer standards, the roof now provides renewed protection and reliability on a steep-slope system.
Materials Used
Roofing:
Atlas Pinnacle architectural shingles – Oyster Gray (2 bundles)
3-tab light gray ridge caps – Oyster Gray (4)
Underlayment & Protection:
Ice & water shield (16 ft)
Ventilation & Accessories:

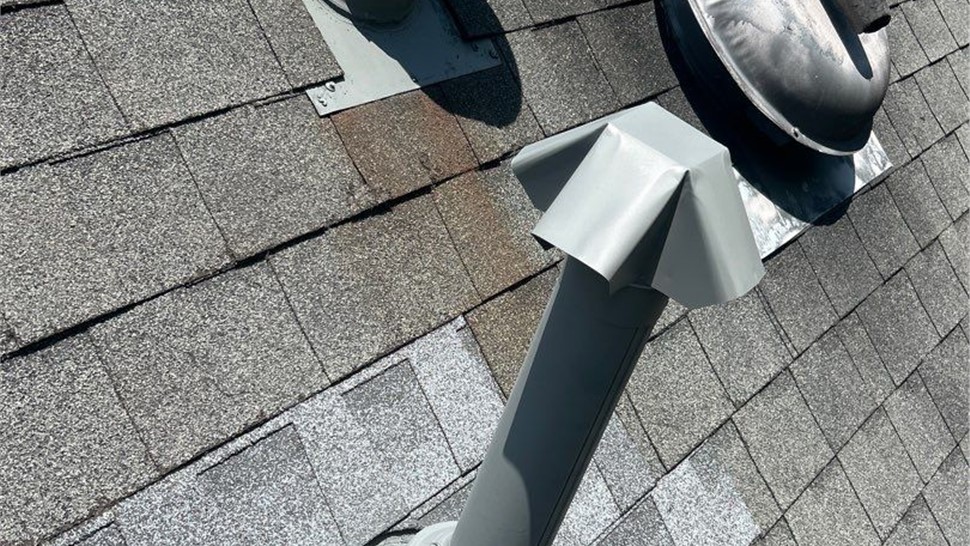

4" steep HVAC vent base flashing, cap, and collars (2)
3" steep HVAC vent base flashing, cap, and collars (1)

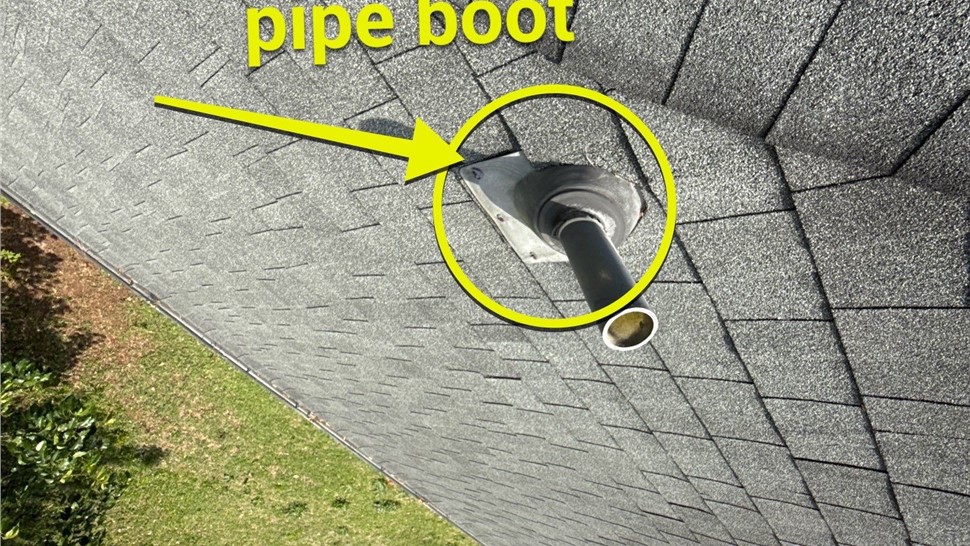

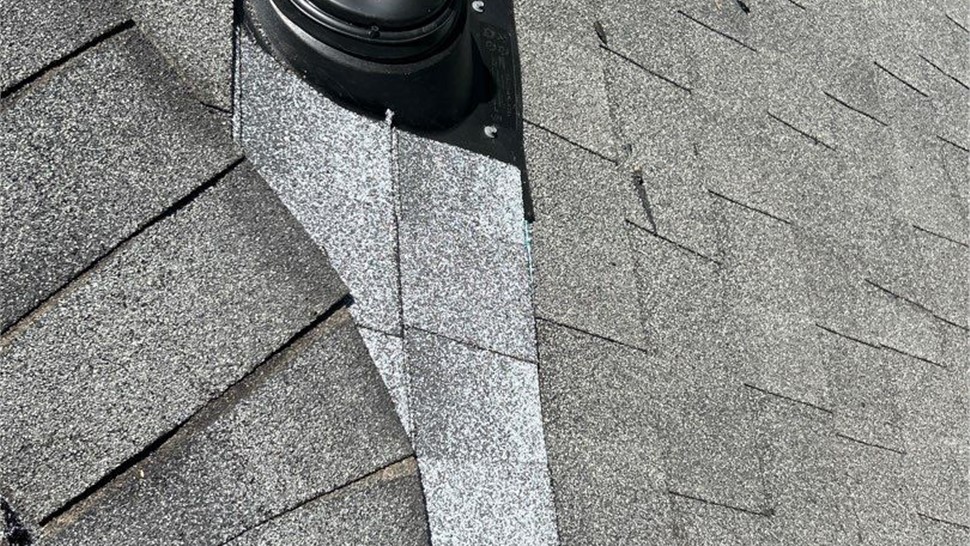

Plastic pipe boots with rain collars (3)
Flashing & Metals:

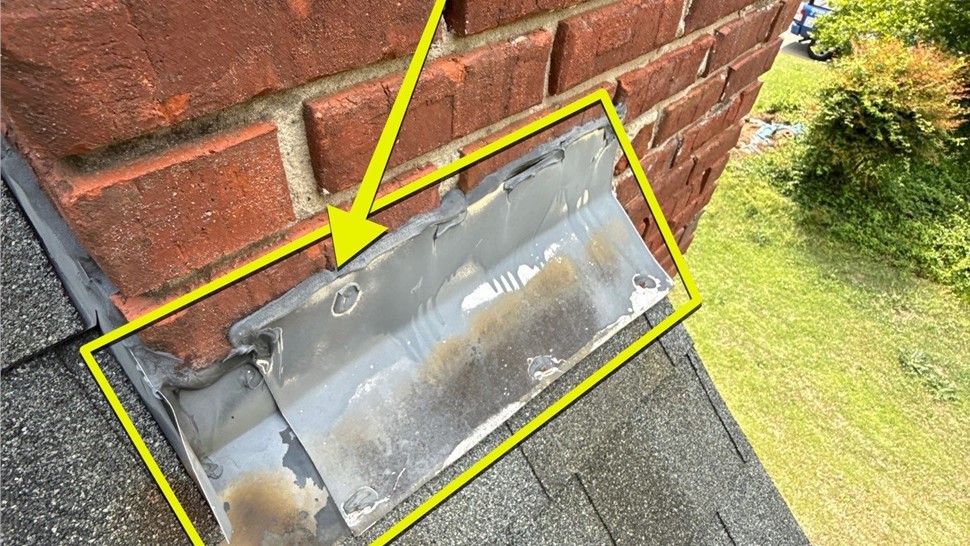

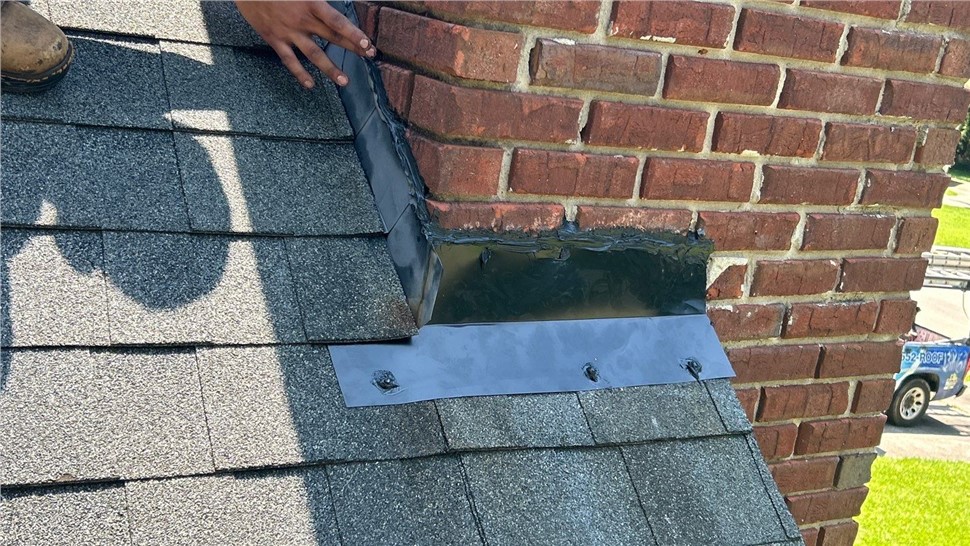

4" x 4" headwall flashing – 2' length (1)
Decking & Lumber:
OSB plywood (1/2 sheet)
Fasteners & Sealants:
Shingle nails
Plywood nails
Screws with rubber washers
2100 roof sealant
Finishes:
Gray spray paint (2 cans)
