Weathered Wood Roof & Chimney Upgrade

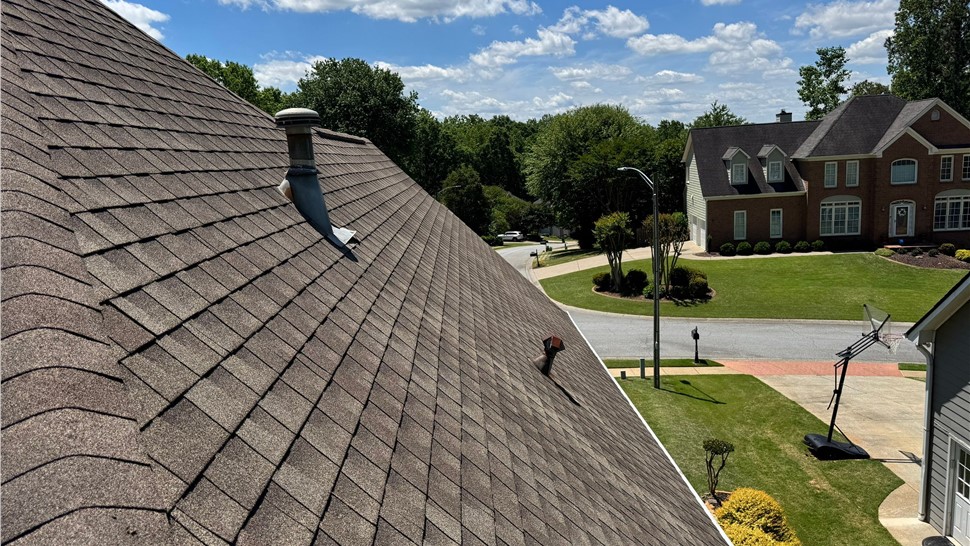

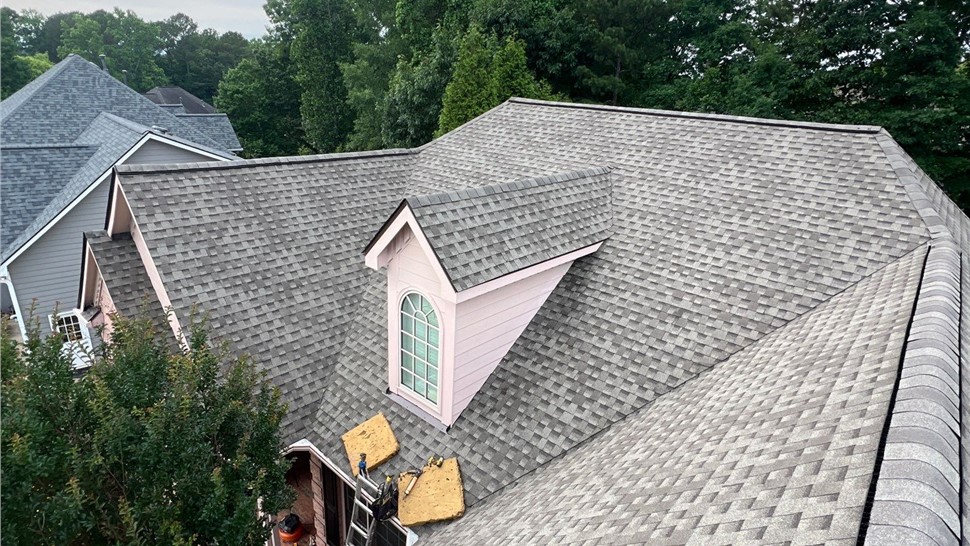

This roof replacement in Woodstock, GA restored full protection to the home using GAF Timberline HDZ shingles in Weathered Wood. The project improved curb appeal, enhanced weather resistance, and delivered a durable, manufacturer-backed roofing system designed for North Georgia’s climate.

Project Overview

Following storm exposure and age-related wear, the homeowner noticed declining roof performance, including compromised shingles, aging flashing, chimney-related vulnerabilities, and ventilation concerns. An inspection confirmed the need for a full roof replacement, along with upgraded leak protection, ventilation improvements, chimney pan work, and targeted carpentry repairs. The existing roofing system no longer provided reliable defense against Woodstock’s frequent rain events and seasonal storms, making a comprehensive solution necessary.

Results

The completed roofing system delivered immediate improvements in durability, appearance, and long-term performance. GAF Timberline HDZ shingles provide enhanced wind resistance, consistent coverage, and reliable protection. Advanced leak barriers were installed at valleys, penetrations, chimneys, and along flashed wall areas to reinforce water protection.

Low-slope sections were addressed using a Liberty modified bitumen system with matching cap sheet for seamless waterproofing. Ventilation was upgraded by installing GAF Cobra III ridge venting on all ridges except the front dormer, along with additional exhaust vents to improve attic airflow and system efficiency. A new custom-fabricated chimney pan with increased turndown was installed to improve water shedding and protect surrounding trim.

Decking repairs were completed where required to meet code and ensure a solid nailing surface. The project also included exterior carpentry repairs to chimney and dormer siding, restoring proper clearances and a clean finished appearance. With installation completed to manufacturer standards, the homeowner now has a secure, storm-ready roofing system built for long-term performance.

Materials Used

Roofing:

GAF Timberline HDZ shingles – Weathered Wood (45.33 sq)

GAF Seal-A-Ridge hip & ridge cap – Weathered Wood (9 bundles)

Underlayment & Protection:

GAF FeltBuster synthetic underlayment (5 rolls)

GAF StormGuard ice & water shield (4 rolls)

Low-Slope Roofing System:

Liberty cap sheet – Weathered Wood (1 roll)

Modified bitumen base sheet (MA) (1 roll)

Modified bitumen base sheet (SA) (1 roll)

Starter & Edge Protection:

GAF Pro-Start starter shingles (5 bundles)

Drip edge – 10" x 4" x 1" Beaver Brown at eaves (24 pcs)

Drip edge – 10" x 4" x 2" brown at rakes (25 pcs)

Drip edge – 10" x 5" x 2" brown at dormer eaves (3 pcs)

Ventilation & Accessories:

GAF Cobra III ridge vent (25 pcs)

4" black gooseneck exhaust vent (1)

7" black gooseneck exhaust vent (1)

3-in-1 pipe boots with rain collars – Black (4 boots)

HVAC caps, collars, and flashing kits (2 kits)

Flashing & Metals:

Rolled flashing – 25' galvanized (24" wide) (1 roll)

Step flashing – 2" x 4" x 8" black (2 boxes)

Headwall flashing – 4" x 4" brown (2 pcs)

Custom fabricated black chimney pan with increased turndown (1)

Decking & Lumber:

7/16" OSB decking (15 boards)

Fasteners & Sealants:

1 lb box 1 1/4" aluminum nails (1 box)

1 1/4" galvanized nail coils (3 boxes)

Stinger NailPac (3 boxes)

NP1 sealant – Black (2 tubes)

Ultra Karnack 19 roofing sealant (10 tubes)

Finishes:

Black spray paint (3 cans)

Siding / Exterior Carpentry:

8.25" primed Hardie fiber cement Cedarmill lap siding (as needed)

5/4" x 6" Hardie trim board

5/4" x 4" Hardie trim board

1x8 Hardie trim board
