Pewter Gray Roof Replacement | Huntsville, AL
This roof replacement in Huntsville, AL restored full protection to the home using GAF Timberline Ultra HDZ shingles in Pewter Gray. The project improved curb appeal, increased weather resistance, and delivered a durable, manufacturer-backed roofing system designed to perform under Huntsville’s seasonal storms and heavy rainfall.
Project Overview

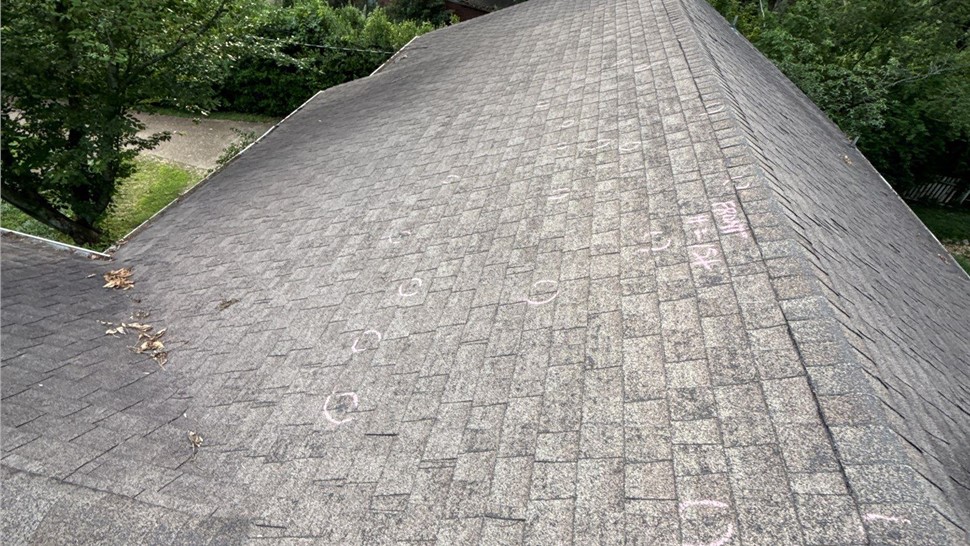

Following storm exposure and age-related wear, the homeowner experienced declining roof performance, including worn shingles, compromised flashing, and ventilation inefficiencies. An inspection confirmed the need for a full roof replacement, along with enhanced leak protection, flashing upgrades, and ventilation improvements. The existing roofing system no longer provided dependable protection, prompting the installation of a modern, code-compliant roofing solution built for long-term durability.
Results
The completed roofing system delivered immediate improvements in protection, performance, and appearance. GAF Timberline Ultra HDZ shingles provided enhanced wind resistance, uniform coverage, and long-term reliability. Advanced leak barriers were installed at valleys, penetrations, and chimney areas, while low-slope sections were reinforced using a Liberty cap sheet system for added waterproofing.

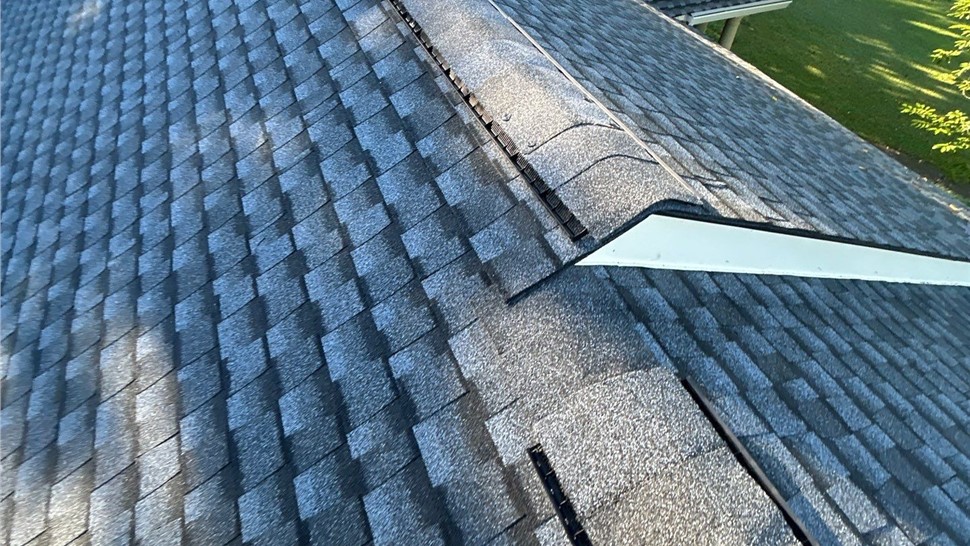

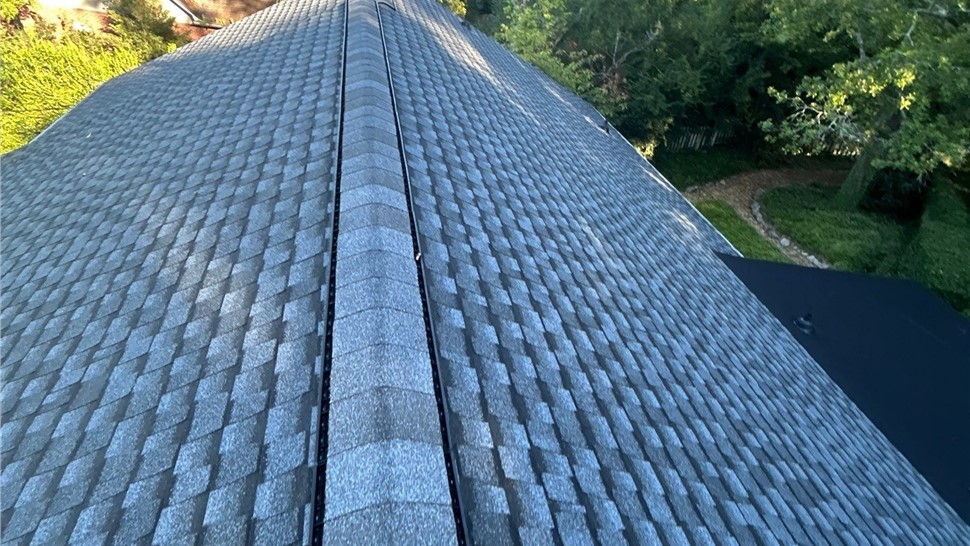

Ventilation was upgraded by removing the existing power fan and installing a ridge vent system to improve airflow and temperature regulation. New chimney flashing and a chimney cricket were constructed to redirect water and reduce long-term leak risk. With installation completed to manufacturer and local code standards, the homeowner now has a secure roofing system built to withstand future weather conditions.
Materials Used
Roofing
GAF Timberline Ultra HDZ shingles – Pewter Gray
GAF Seal-A-Ridge hip & ridge cap – Pewter Gray
Underlayment & Protection
Tri-Built synthetic underlayment (4 rolls)
Tri-Built ice & water shield (2 rolls)
Low-Slope Roofing System
Liberty cap sheet – Black (4 rolls)
Starter & Edge Protection
Tri-Built starter shingles (3 bundles)
Drip edge – 10' x 4" x 2" black (eaves) (14 pcs)
Drip edge – 10' x 4" x 2" black (rakes) (14 pcs)
Kirk’s metal drip edge (5 pcs)
Ventilation & Accessories
Tri-Built 4' ridge vent (23 pcs)
3-in-1 pipe boots with rain collars – Black (5 boots)
Electrical box to close power fan (1)
Flashing & Metals
Rolled flashing – 25' galvanized (24" wide) (1 roll)
Step flashing – 2" x 4" x 8", 26-ga black (1 box)
Headwall flashing – 4" x 4" black (1 pc)
Counter flashing – 5" black (2 pcs)
Decking & Lumber
CDX plywood (8 boards)
2" x 4" lumber for chimney cricket (1 pc)
Fasteners & Sealants
Simplex nails – 1 1/2" (2 boxes)
Galvanized nail coils – 1 1/4" (2 boxes)
Button cap nails (2 boxes)
NP1 sealant – Black (5 tubes)
Ultra Karnack 19 roofing sealant (2 tubes)
Finishes
Black spray paint (2 cans)
